Product Summary
Number of Channels 1
Resolution 14b
Conversion Rate 667KSPS
Interface Type Parallel
Single Supply Voltage (Typ) 12/15V
Dual Supply Voltage (Typ) Not RequiredV
Settling Time 1.5us
Architecture R-2R
Power Supply Requirement Single
Output Type Current
Integral Nonlinearity Error ±1LSB
Single Supply Voltage (Min) 11.4V
Single Supply Voltage (Max) 15.75V
Dual Supply Voltage (Min) Not RequiredV
Dual Supply Voltage (Max) Not RequiredV
Operating Temp Range -55C to 125C
Operating Temperature Classification Military
Mounting Through Hole
Pin Count 24
Package Type CDIP
Packaging Rail/Tube
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD7538TQ |
|

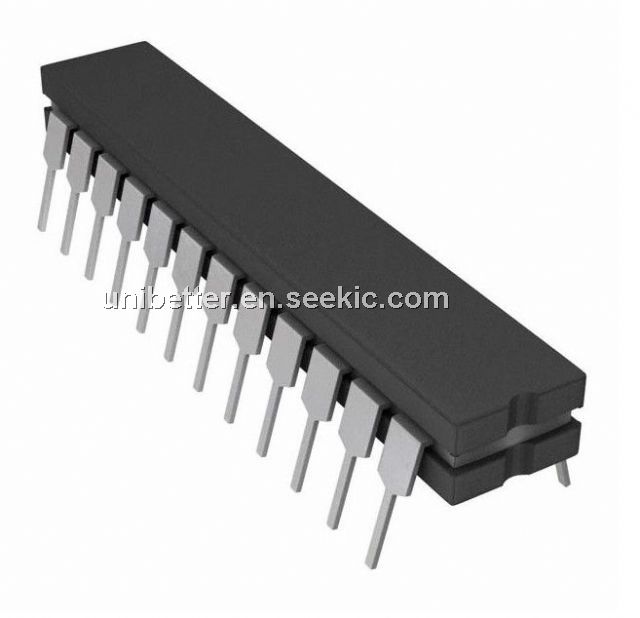

IC DAC 14BIT W/BUFF 24-CDIP |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |
AD75004 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
AD75004KN |
Analog Devices Inc |
IC DAC 12BIT QUAD W/BUFF 24-DIP |
Data Sheet |
Negotiable |
|
||||||||||||
 |
AD75004KNZ |
|
IC DAC 12BIT QUAD W/BUFF 24DIP |
Data Sheet |
|
|
||||||||||||
 |
AD75004KP |
|
IC DAC 12BIT QUAD W/BUFF 28-PLCC |
Data Sheet |
|
|
||||||||||||
|
AD75004KPZ |
|
IC DAC 12BIT QUAD W/BUFF 28-PLCC |
Data Sheet |
|
|
||||||||||||
|
AD7501 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
