Product Summary
Logic Family HC
Technology CMOS
Number of Bits 8
Number of Elements 1
Type D-Type Bus Interface
Clock-Edge Trigger Type Positive-Edge
Polarity Non-Inverting
Operating Supply Voltage (Typ) 5V

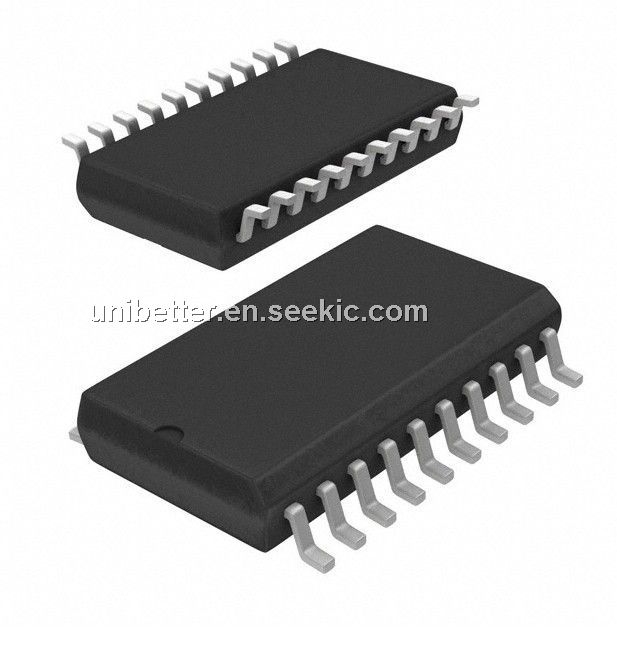

Package Type SOIC
Packaging Tape and Reel
Propagation Delay Time 330ns
Output Type 3-State
Low Level Output Current 7.8mA
High Level Output Current -7.8mA
Frequency 28MHz
Operating Supply Voltage (Min) 2V
Operating Supply Voltage (Max) 6V
Operating Temp Range -40C to 85C
Operating Temperature Classification Industrial
Mounting Surface Mount
Pin Count 20
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SN74HC574DWR |
Texas Instruments |
Flip Flops Tri-State Octal |
Data Sheet |
|
|
||||||||||||
|
SN74HC574DWRE4 |
Texas Instruments |
Flip Flops Octal Edge-Trig D-Ty F-F W/3-State Otpt |
Data Sheet |
Negotiable |
|
||||||||||||
|
SN74HC574DWRG4 |
Texas Instruments |
Flip Flops Octal Edge-Trig D-Ty F-F W/3-State Otpt |
Data Sheet |
Negotiable |
|
||||||||||||
