Product Summary
Voltage Regulator Type LDO
Topology LDO
Regulator Output Type Fixed
Polarity Type Positive
Number of Outputs 2
Input Voltage (Min) 2.7V
Input Voltage 6V
Output Voltage 3.3/1.8V

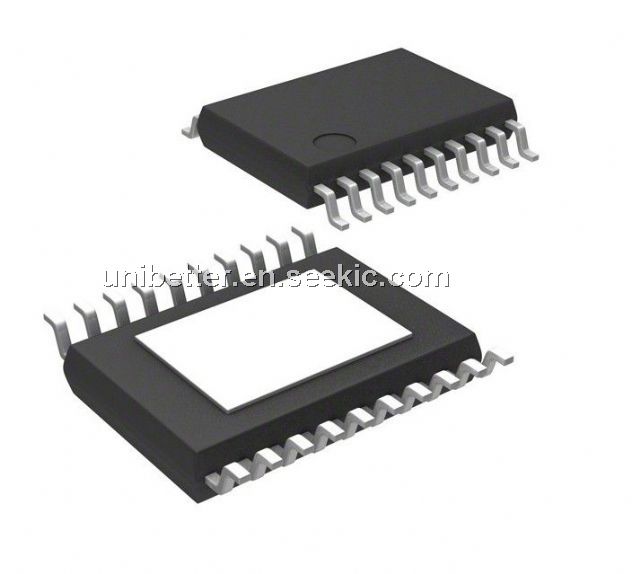

Package Type HTSSOP EP
Packaging Tape and Reel
Output Current 0.5/0.25A
Power Dissipation 4.115W
Load Regulation 1mV
Line Regulation 0.01%
Output Voltage Accuracy ±2%
Operating Temp Range -40C to 125C
Operating Temperature Classification Automotive
Dropout Voltage@Current (Max) 0.275@500mA
Dropout Voltage@Current (Typ) 0.17@500mA
Pin Count 20
Mounting Surface Mount
Quiescent Current (Max) 230uA
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TPS70151PWPRG4 |
Texas Instruments |
Low Dropout (LDO) Regulators Dual-Output LDO Voltage Regulator |
Data Sheet |
|
|
||||||||||
|
TPS70151PWPR |
Texas Instruments |
Low Dropout (LDO) Regulators Dual-Output LDO Voltage Regulator |
Data Sheet |
|
|
||||||||||
