Product Summary

Package Type Chip Led
Emitting Color Yellow Green
Luminous Intensity 35mcd
Test Current (It) 20mA
Forward Current 30mA
Dominant Wave Length 571nm
Viewing Angle 130°
Forward Voltage 2.4V
Product Length (mm) 2.1mm
Product Height (mm) 1mm
Product Depth (mm) 0.6mm
Mounting Surface Mount
Packaging Tape and Reel
Peak Wavelength 574nm
Shape Type Rectangular
Chip Material AlGaInP
Main Category Chip LED
Number of Elements 1
Pin Count 2
Operating Temperature Classification Industrial
Type Uni-Color
Lens Type Colorless Non Diffused
Operating Temp Range -55C to 85C
Reverse Voltage 5V
Power Dissipation 75mW
Lens Dimensions 1.7x0.6x0.5mm

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

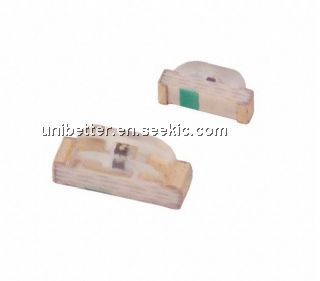

LTST-S220KGKT
LTST-S220KGKT

Lite-On

Standard LED - SMD Green Clear 571nm

Data Sheet

0-1: $0.07
1-10: $0.06
10-50: $0.06
50-100: $0.05
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
LTST-008RGB
LTST-008RGB

Lite-On

Standard LED - SMD SMD LED Side View Red/Green/Blue

Data Sheet

0-3430: $0.40
3430-5000: $0.35
5000-10000: $0.32
LTST-010KFKT
LTST-010KFKT

Lite-On

Standard LED - SMD SMD Side View 0.4mm Orange 605nm 180mcd

Data Sheet

0-3500: $0.10
3500-5000: $0.09
5000-10000: $0.08
LTST-010KGKT
LTST-010KGKT

Lite-On

Standard LED - SMD SMD Side View 0.4mm Green 571nm 120mcd

Data Sheet

0-3500: $0.10
3500-5000: $0.09
5000-10000: $0.08
LTST-010KRKT
LTST-010KRKT

Lite-On

Standard LED - SMD SMD Side View 0.4mm Red 631nm 200mcd

Data Sheet

0-3500: $0.10
3500-5000: $0.09
5000-10000: $0.08
LTST-010KSKT
LTST-010KSKT

Lite-On

Standard LED - SMD SMD Side View 0.4mm Yellow 589nm 300mcd

Data Sheet

0-3500: $0.10
3500-5000: $0.09
5000-10000: $0.08
LTST-010TBKT
LTST-010TBKT

Lite-On

Standard LED - SMD SMD Side View 0.4mm Blue 470nm 150mcd

Data Sheet

0-3500: $0.10
3500-5000: $0.09
5000-10000: $0.08
