Product Summary

Number of Elements 1
Resolution 12Bit
Architecture SAR
Sample Rate 100KSPS
Input Polarity Unipolar/Bipolar
Input Type Voltage
Rated Input Volt 10/20/±5/±10V
Differential Input No
Power Supply Requirement Dual
Single Supply Voltage (Typ) Not RequiredV
Single Supply Voltage (Min) Not RequiredV
Single Supply Voltage (Max) Not RequiredV
Dual Supply Voltage (Typ) ±12/±15V
Dual Supply Voltage (Min) ±11.4V
Dual Supply Voltage (Max) ±16.5V
Power Dissipation 575mW
Integral Nonlinearity Error ±1LSB
Operating Temp Range -55C to 125C
Operating Temperature Classification Military
Mounting Through Hole
Pin Count 28

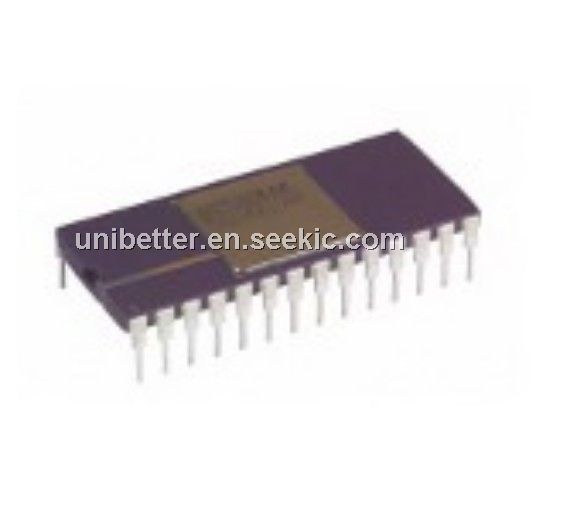

Package Type SBCDIP
Input Signal Type Single-Ended
