Product Summary
Number of Channels 4
Resolution 12b
Conversion Rate 125KSPS
Interface Type Parallel
Single Supply Voltage (Typ) Not RequiredV
Dual Supply Voltage (Typ) ±15V
Settling Time 10us
Architecture R-2R
Power Supply Requirement Dual
Output Type Voltage
Integral Nonlinearity Error ±1LSB
Single Supply Voltage (Min) Not RequiredV
Single Supply Voltage (Max) Not RequiredV
Dual Supply Voltage (Min) ±11.4V
Dual Supply Voltage (Max) ±16.5V
Operating Temp Range -55C to 125C
Operating Temperature Classification Military
Mounting Through Hole
Pin Count 28
Package Type CDIP
Packaging Rail/Tube
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

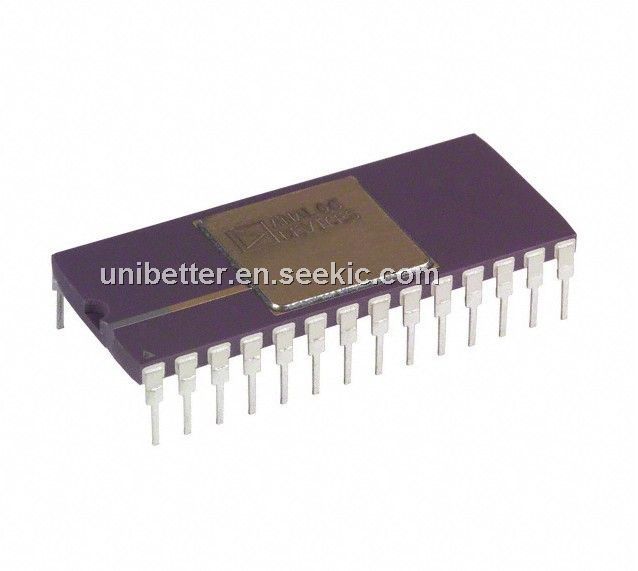

 AD664SD-BIP |
|
IC DAC 12BIT QUAD BIPOLAR 28CDIP |
Data Sheet |
|
|
||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||
 |
AD660 |
Other |
|
Data Sheet |
Negotiable |
|
||||||
|
AD6600 |
Other |
|
Data Sheet |
Negotiable |
|
||||||
 |
AD6600AST |
Analog Devices Inc |
IC ADC DUAL W/RSSI 44-LQFP |
Data Sheet |
Negotiable |
|
||||||
|
AD6600AST-REEL |
Analog Devices Inc |
IC ADC DUAL W/RSSI 44-LQFP T/R |
Data Sheet |
Negotiable |
|
||||||
 |
AD6600ASTZ |
|
IC ADC DUAL W/RSSI 44-LQFP |
Data Sheet |
|
|
||||||
|
AD6600ASTZ-REEL |
|
IC ADC DUAL W/RSSI 44-LQFP T/R |
Data Sheet |
|
|
||||||
