Product Summary

Number of Elements 2
Resolution 14Bit
Architecture Pipelined
Sample Rate 80MSPS
Input Polarity Bipolar
Input Type Voltage
Rated Input Volt ±1V
Differential Input Yes
Power Supply Requirement Single
Single Supply Voltage (Typ) 1.8V
Single Supply Voltage (Min) 1.7V
Single Supply Voltage (Max) 1.9V
Dual Supply Voltage (Typ) Not RequiredV
Dual Supply Voltage (Min) Not RequiredV
Dual Supply Voltage (Max) Not RequiredV
Power Dissipation 209mW
Differential Linearity Error ±0.7LSB
Integral Nonlinearity Error ±2.5LSB
Operating Temp Range -40C to 85C
Operating Temperature Classification Industrial
Mounting Surface Mount
Pin Count 64
Package Type LFCSP EP
Input Signal Type Differential

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

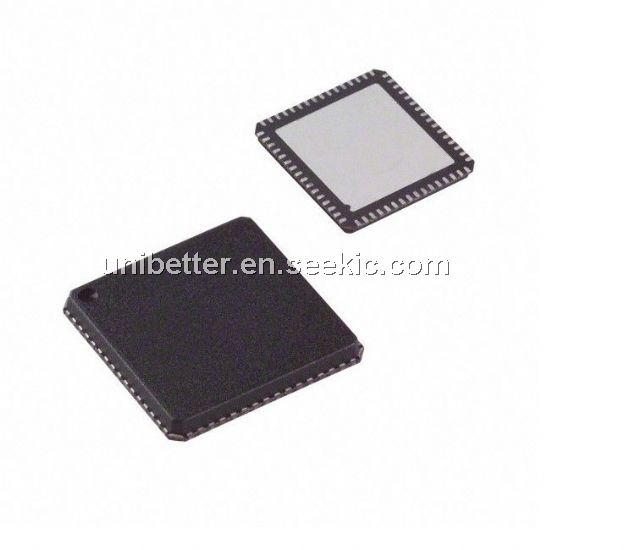

AD9251BCPZ-80
AD9251BCPZ-80

IC ADC 14BIT 80MSPS 64LFCSP
Data Sheet
0-1: $35.23
1-10: $33.16
10-100: $29.64
100-250: $27.98
250-500: $27.63
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD9200
AD9200
Other

Data Sheet
Negotiable
AD9200ARS
AD9200ARS

IC ADC CMOS 10BIT 20MSPS 28-SSOP
Data Sheet
0-47: $3.30
AD9200ARSRL
AD9200ARSRL

IC ADC 10BIT CMOS 20MSPS 28-SSOP
Data Sheet
0-1500: $2.17
AD9200ARSZ
AD9200ARSZ

IC ADC 10BIT CMOS 20MSPS 28-SSOP
Data Sheet
0-1: $3.50
1-10: $3.15
10-100: $2.59
100-250: $2.38
250-500: $2.17
500-1000: $1.89
1000-2500: $1.86
AD9200ARSZRL
AD9200ARSZRL

IC ADC 10BIT CMOS 20MSPS 28-SSOP
Data Sheet
0-1500: $1.89
AD9200JRS
AD9200JRS
Analog Devices Inc
IC ADC 10BIT CMOS 20MSPS 28-SSOP
Data Sheet
1-47: $3.14
