Product Summary

Number of Elements 1
Resolution 14Bit
Architecture Pipelined
Sample Rate 10MSPS
Input Polarity Unipolar
Input Type Voltage
Rated Input Volt ±1/±2.5V
Differential Input Yes
Power Supply Requirement Analog and Digital
Single Supply Voltage (Typ) 5V
Single Supply Voltage (Min) 4.75V
Single Supply Voltage (Max) 5.25V
Dual Supply Voltage (Typ) Not RequiredV
Dual Supply Voltage (Min) Not RequiredV
Dual Supply Voltage (Max) Not RequiredV
Differential Linearity Error ±1LSB
Integral Nonlinearity Error ±2.5LSB(Typ)
Operating Temp Range -40C to 85C
Operating Temperature Classification Industrial
Mounting Surface Mount
Pin Count 44
Package Type MQFP

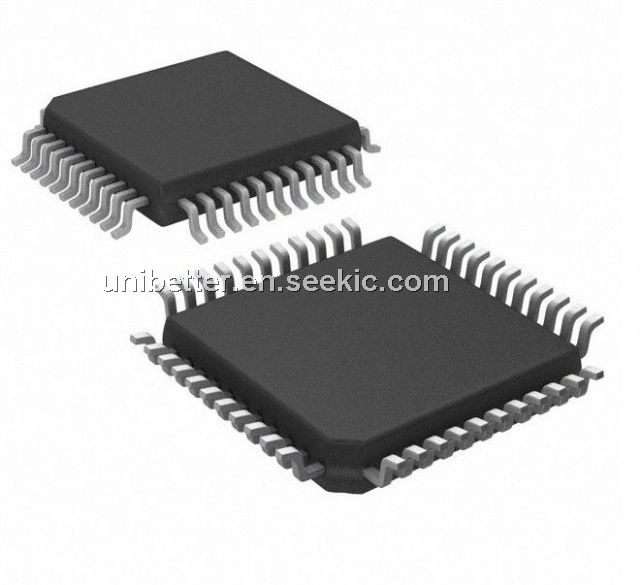

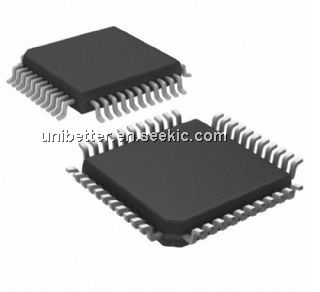

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD9240AS
AD9240AS

IC ADC 14BIT 10MSPS 44-MQFP
Data Sheet
0-12: $19.28
AD9240ASRL
AD9240ASRL

IC ADC 14BIT 10MSPS 44-MQFP
Data Sheet
0-800: $14.86
AD9240ASZ
AD9240ASZ

IC ADC 14BIT 10MSPS 44-MQFP
Data Sheet
0-1: $20.30
1-10: $18.78
10-100: $16.04
100-250: $14.72
250-500: $14.01
500-1000: $13.54
AD9240ASZRL
AD9240ASZRL

IC ADC 14BIT 10MSPS 44-MQFP TR
Data Sheet
0-800: $13.54
