Product Summary

Multiplexer Configuration Single 16:1
Number of Inputs 16
Number of Outputs 1
Number of Channels 1
Analog Switch ON Resistance 700@16.5VOhm
Analog Switch Turn On Time 450@16.5Vns
Analog Switch Turn Off Time 450@16.5Vns

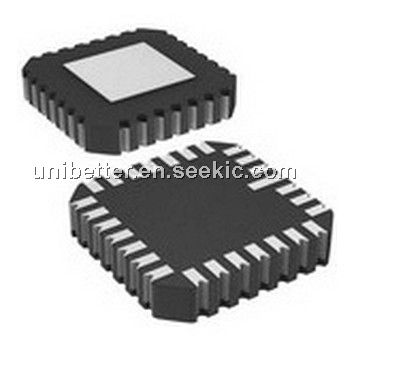

Package Type LCC
Packaging Rail/Tube
Power Supply Requirement Single/Dual
Single Supply Voltage (Min) 10.8V
Single Supply Voltage (Typ) 12/15V
Single Supply Voltage (Max) 16.5V
Dual Supply Voltage (Min) ±10.8V
Dual Supply Voltage (Typ) ±12/±15V
Dual Supply Voltage (Max) ±16.5V
Power Dissipation 470mW
Supply Current 1.5@16.5V@-55C to 125C/-0.2@-16.5V@-55C to 125CmA
Mounting Surface Mount
Pin Count 28
Operating Temp Range -55C to 125C
Operating Temperature Classification Military
