Product Summary

Standard Package   250
Category Power Supplies - Board Mount
Family DC DC Converters
Series SIMPLE SWITCHER?
Packaging   Tape & Reel (TR)
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 20V
Voltage - Output 1 0.8 ~ 6 V
Voltage - Output 2 -
Voltage - Output 3 -
Current - Output (Max) 3A
Power (Watts) - Manufacture Series 18W
Voltage - Isolation -
Features With UVLO
Mounting Type Surface Mount
Package / Case TO-PMOD-7, Power Module
Size / Dimension 0.40" L x 0.54" W x 0.18" H (10.2mm x 13.8mm x 4.6mm)
Operating Temperature -55°C ~ 125°C
Efficiency 92%
Power (Watts) - Max 18W

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

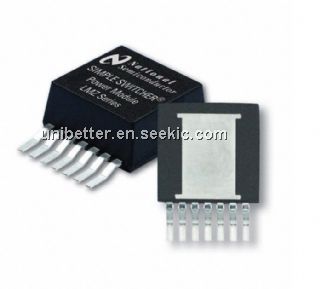

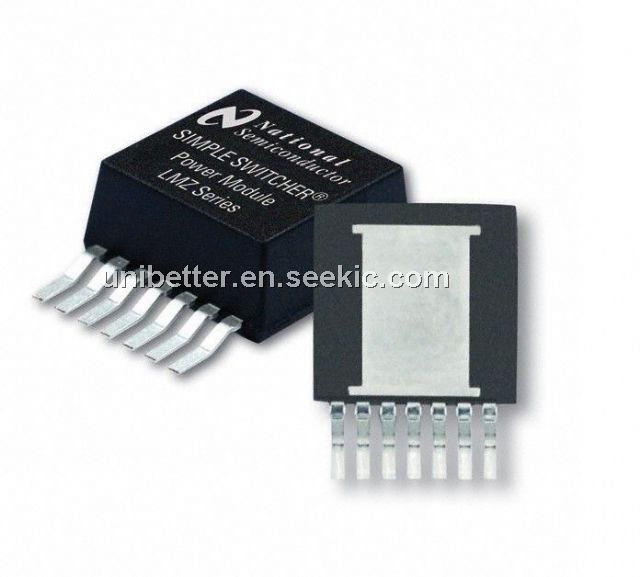

LMZ12003EXTTZ/NOPB
LMZ12003EXTTZ/NOPB
National Semiconductor (TI)
DC/DC Switching Converters
Data Sheet
0-1: $15.72
1-25: $13.37
25-100: $12.38
100-250: $11.39
LMZ12003EXTTZE/NOPB
LMZ12003EXTTZE/NOPB
National Semiconductor (TI)
DC/DC Switching Converters
Data Sheet
0-1: $15.72
1-25: $13.37
25-100: $12.38
100-250: $11.39
LMZ12003EXTTZX/NOPB
LMZ12003EXTTZX/NOPB
National Semiconductor (TI)
DC/DC Switching Converters
Data Sheet
0-330: $11.39
330-500: $10.81
